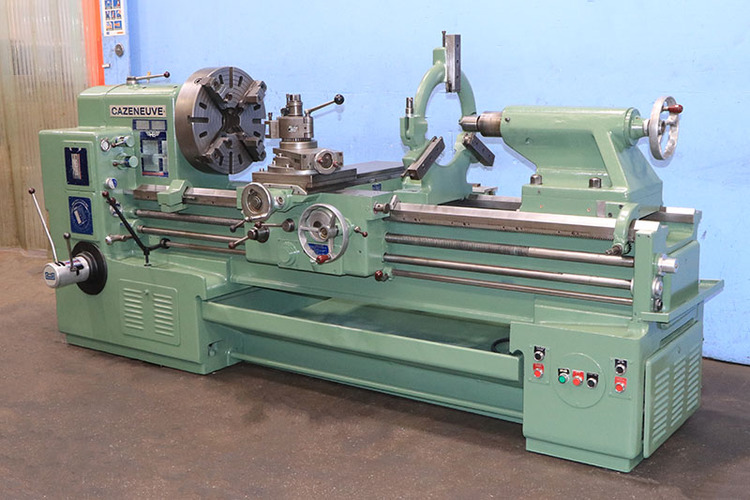

ONE USED-26" x 60" CAZENEUVE ENGINE LATHE

MODEL: HB725, S/N: 40029 C 780821, NEW: 1970'S

SPECIFICATIONS:

SWING OVER BED ...................... 26-3/8"

SWING OVER CROSS SLIDE .............. 15-3/4"

HOLE THRU SPINDLE ................... 3-3/16"

SPINDLE NOSE ........................ D1-11" CAMLOCK

DISTANCE BETWEEN CENTERS ............ 60"

BED WIDTH ........................... 20"

SPINDLE SPEED RANGE ................. 11 - 1250 RPM

THREADING RANGE ENGLISH (73) ........ 3/8 - 224 TPI

THREADING RANGE METRIC (73) ......... .00937 - 56 mm

LONGITUDINAL FEED RANGE (73) ........ .0008" - .440"

CROSS FEED RANGE (73) ............... .0004" - .220"

TAILSTOCK SPINDLE TRAVEL ............ 9-1/4"

TAILSTOCK SPINDLE TAPER ............. #6MT

APPROX MACHINE WEIGHT ............... 6,750 LBS

APPROX MACHINE SIZE ................. 124"L x 50"W x 56"H

EQUIPPED WITH:

INCH & METRIC THREADING CAPABILITY

TAPER TURNING ATTACHMENT

19-1/2" 4-JAW CHUCK

12" 3-JAW BUCK CHUCK

4-WAY TOOL POST

ROLLER TYPE STEADY REST

FOLLOW REST

MICROMETER CARRIAGE STOP

LIVE CENTER FOR TAILSTOCK

COOLANT PUMP & CHIP PAN

HARDENED & GROUND WAYS

20 HORSE POWER MAIN MOTOR
