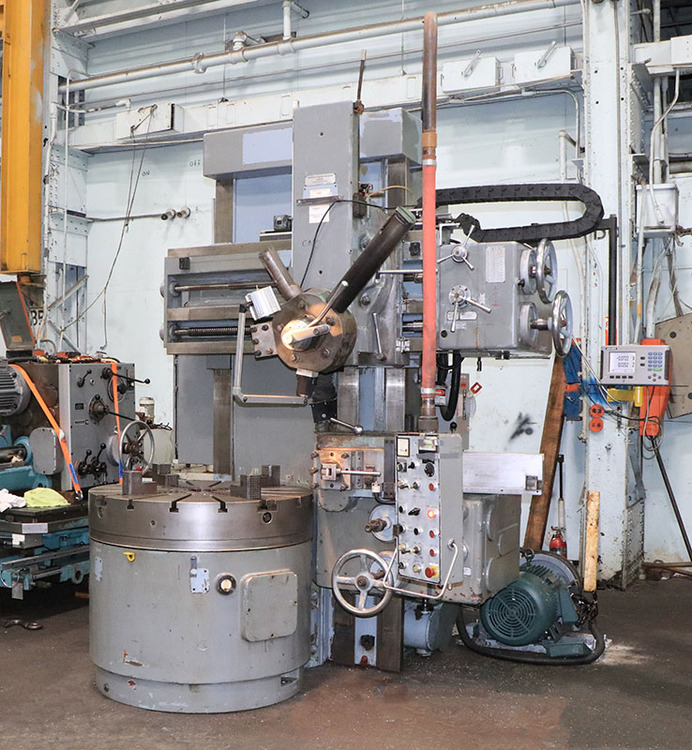

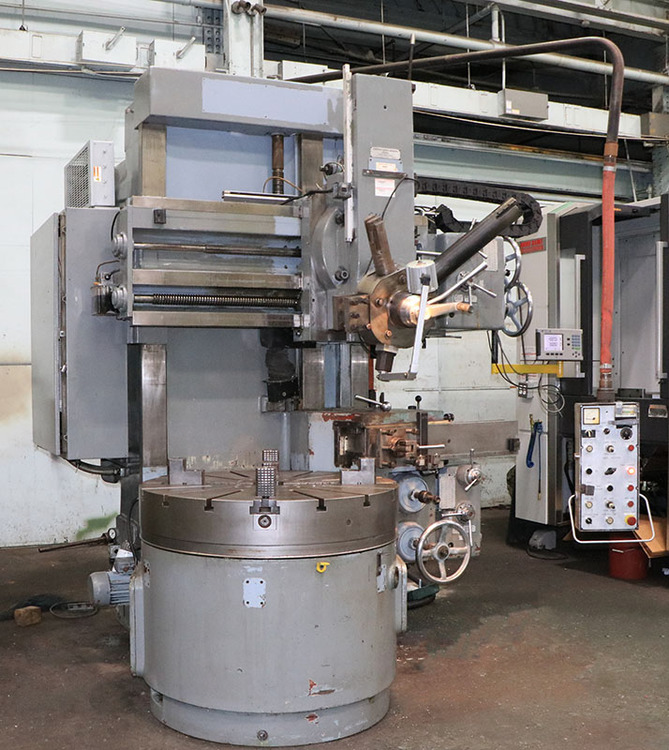

ONE USED-43" DEFUM VERTICAL TURRET LATHE

MODEL: KNA 110/135, S/N: 9107, NEW: 1988

SPECIFICATIONS:

TABLE DIAMETER .......................... 43-1/4"

MAX SWING w/ SIDE HEAD IN POSITION ...... 43-1/4"

MAX SWING w/out SIDE HEAD ............... 53"

MAX HEIGHT FACE OF TOOL HOLDER TO TABLE . 37.4"

VERTICAL TURRET SLIDE TRAVEL ............ 23.62"

VERTICAL TRAVEL OF CROSS RAIL ........... 31.5"

WORK PIECE MAX WEIGHT ................... 8,800 lbs

MAXIMUM DISTANCE, SIDE HEAD RAM TO TABLE  22.44"

SWIVEL OF TURRET HEAD ................... +/- 45"

TABLE SPEEDS (16) ....................... 6.3 - 200 RPM

FEEDS (12) .............................. .002 - .393 IPR

RAPID TRAVERSE RATE ..................... 74 IPM

APPROX WEIGHT ........................... 30,000 LBS

DIMENSIONS:

  LENGTH ................................ 100"

  WIDTH ................................. 89"

  HEIGHT (MIN) .......................... 119"

  HEIGHT (MAX) .......................... 141"

EQUIPPED WITH:

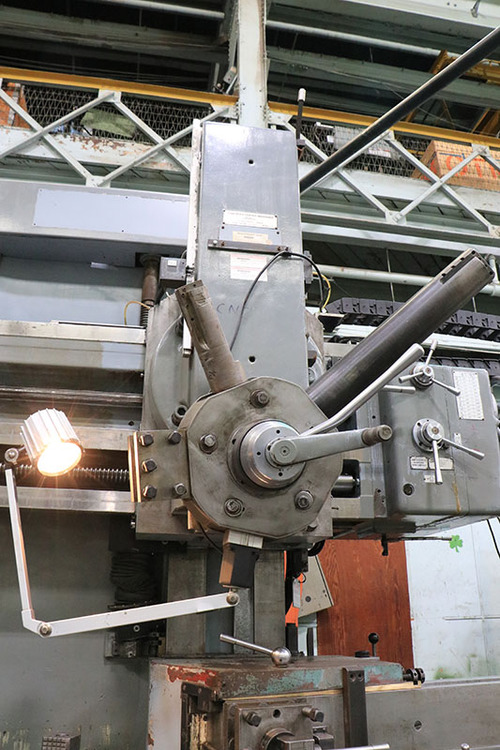

PENTAGON SWIVEL TURRET HEAD ON RAIL

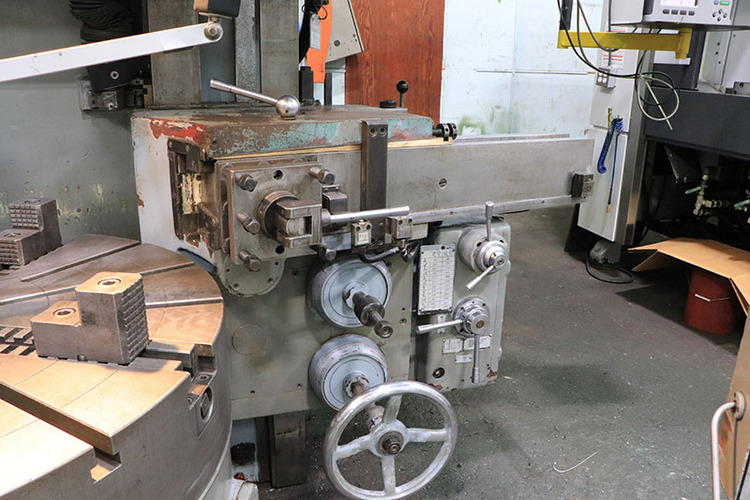

SIDE HEAD

ALL HARDENED WAYS

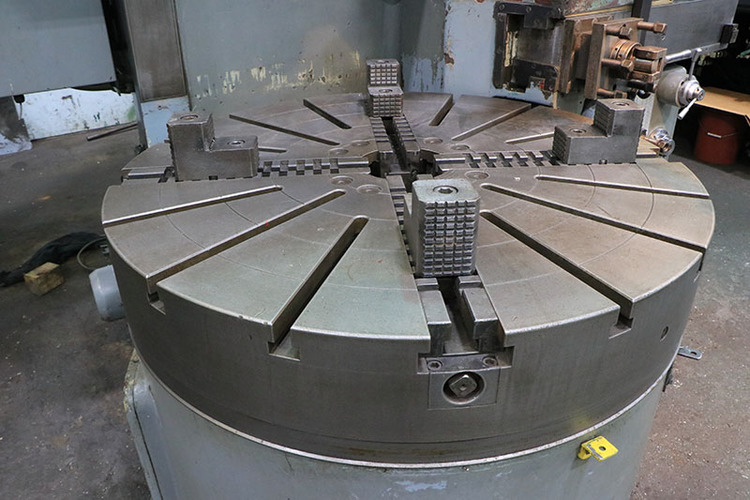

4-JAW CHUCK w/ SET OF (4) HARDENED TOP JAWS

FULL PENDANT CONTROL

ONE-SHOT LUBRICATOR

PUMP & SPLASH GUARDS

.8 HP RAPID TRAVERSE MOTOR

1.5 HP LUBE MOTOR

3 HORSE POWER RAIL ELEVATION MOTOR

30 HORSE POWER MAIN DRIVE MOTOR
