Milling Machines > HAAS VF5SS Vertical Machining Center, 2019
| Size | VF5 |
|---|---|
| Make | HAAS |
| Year | 2019 |

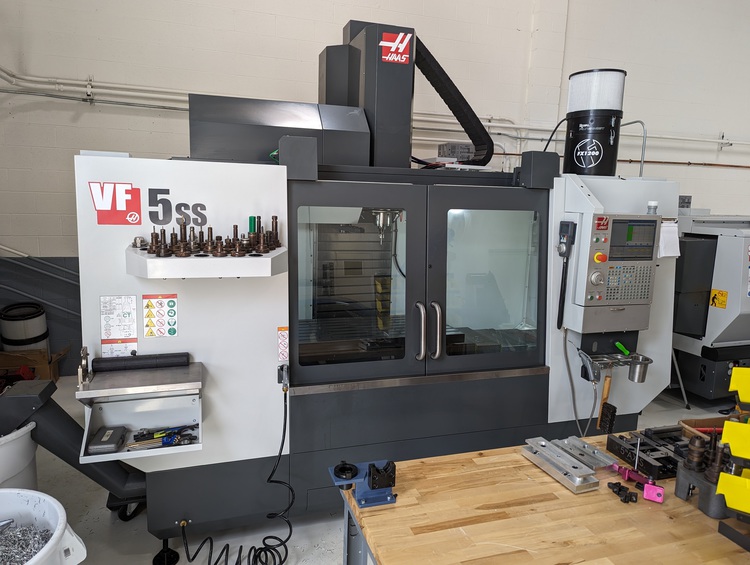

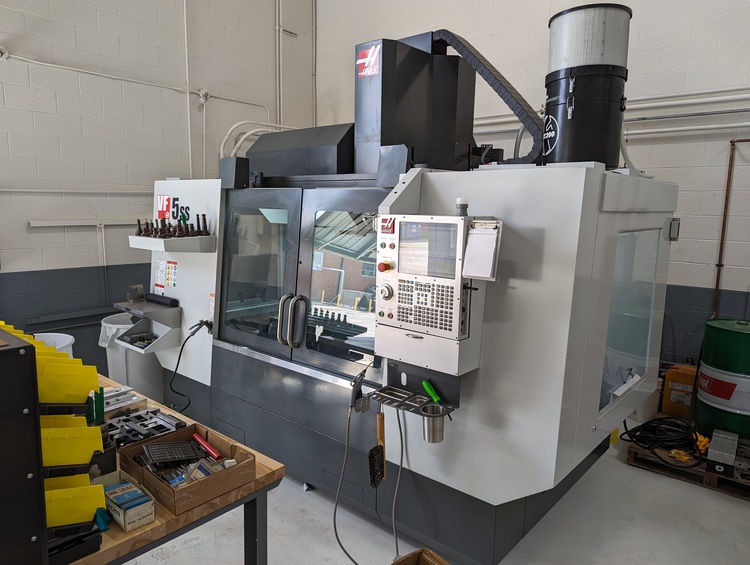

HAAS 4-AXIS VERTICAL MACHINING CENTER
MODEL: VF-5SS, NEW: 2019
SPECIFICATIONS:
X-AXIS TRAVEL........................... 50"
Y-AXIS TRAVEL........................... 26"
Z-AXIS TRAVEL........................... 25"
SPINDLE NOSE TO TABLE................... 4.2" TO 29.2"

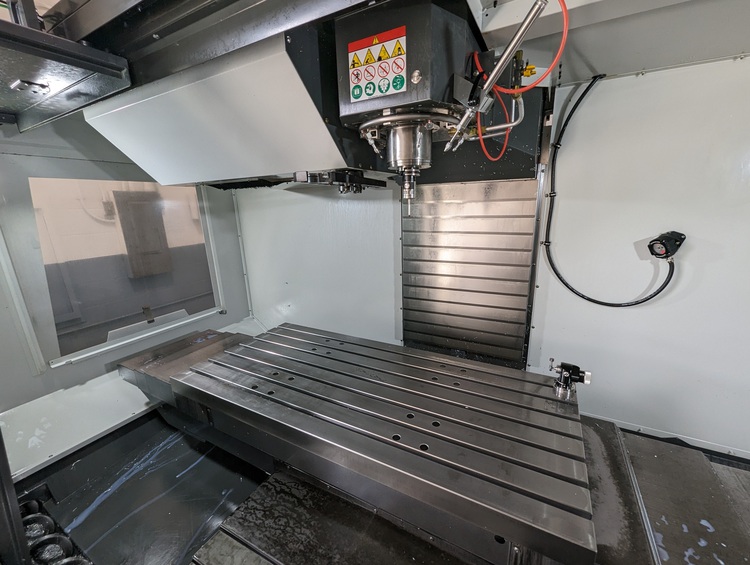

TABLE SIZE.............................. 54" X 24"
MAXIMUM WEIGHT ON TABLE................. 1,750 LBS
MAXIMUM SPINDLE SPEED................... 12,000 RPM
MAX CUTTING FEEDRATES .................. 833 IPM
RAPID TRAVERSE MAXIMUM ................. 1200 IPM
SPINDLE MOTOR........................... 30 HP
SIDE MOUNT TOOL CHANGER................. 30 POSITIONS
SPINDLE TAPER........................... CAT 40
APPROXIMATE MACHINE WEIGHT ............. 14,700 LBS
EQUIPPED WITH:

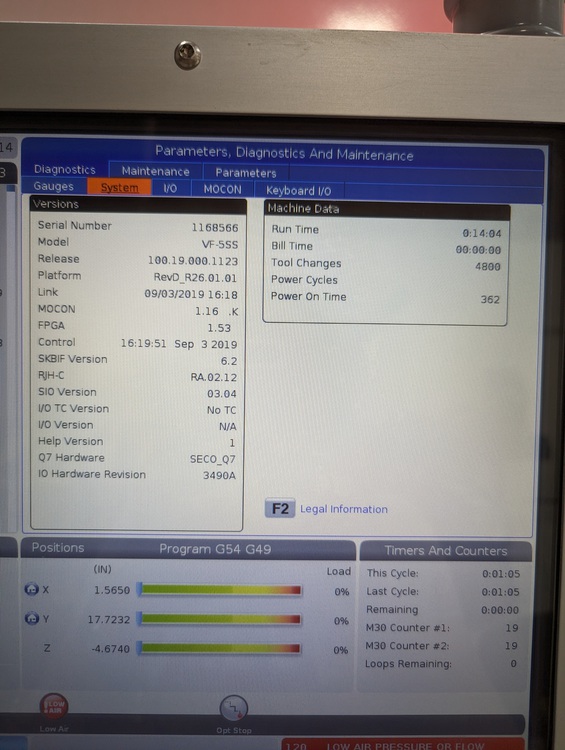

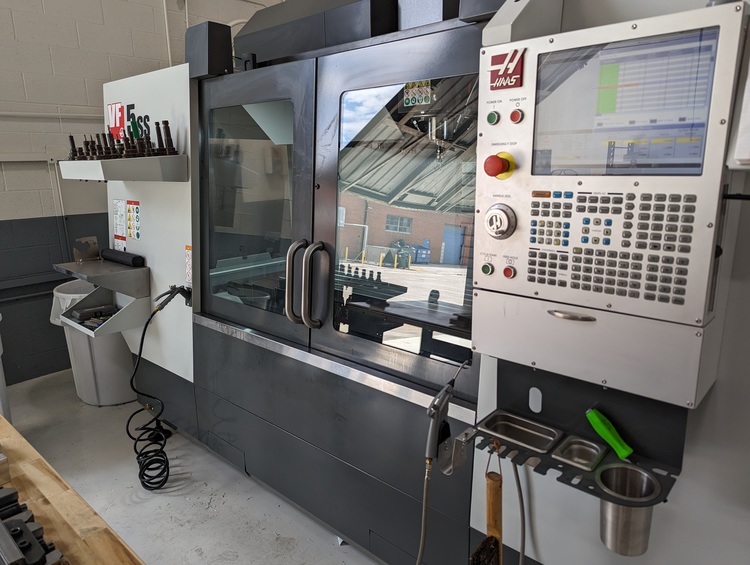

* HAAS CNC CONTROL:
MACROS, ROTATION & SCALING, VPS EDITING, MEDIA DISPLAY
HIGH SPEED MACHINING, RIGID TAPPING, SPINDLE ORIENT
* FOURTH AXIS DRIVE & WIRING

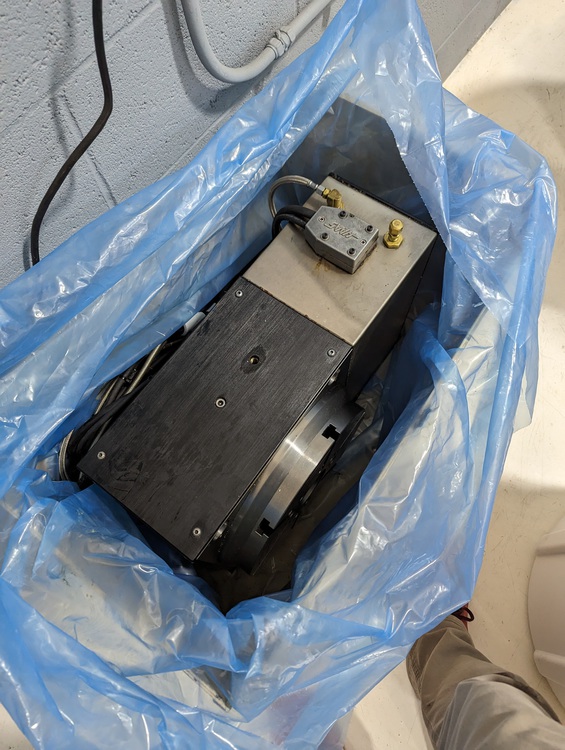

* HAAS 4TH AXIS TABLE MODEL: HRT 310
* REMOTE JOG HANGLE WITH COLOR LCD
* WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
* THROUGH SPINDLE COOLANT (300 PSI PUMP)
* COOLANT SYSTEM
* OIL SKIMMER
* 24 TOOL CAPACITY SIDE MOUNTED TOOL CHANGER
* CHIP AUGER
* 30 HORSE POWER SPINDLE
