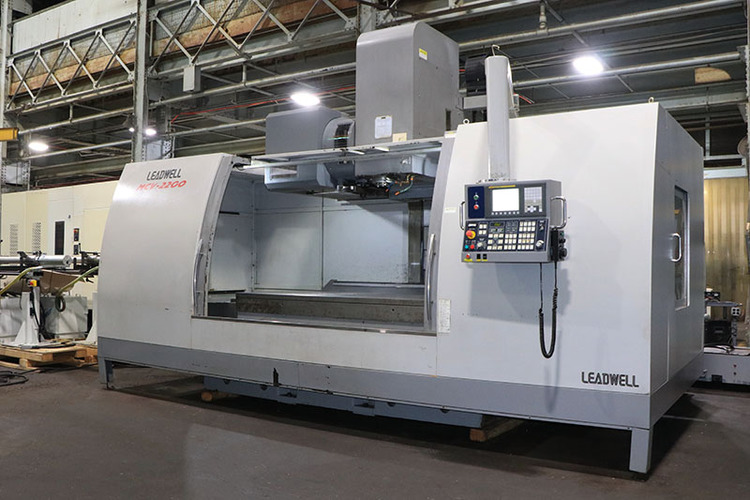

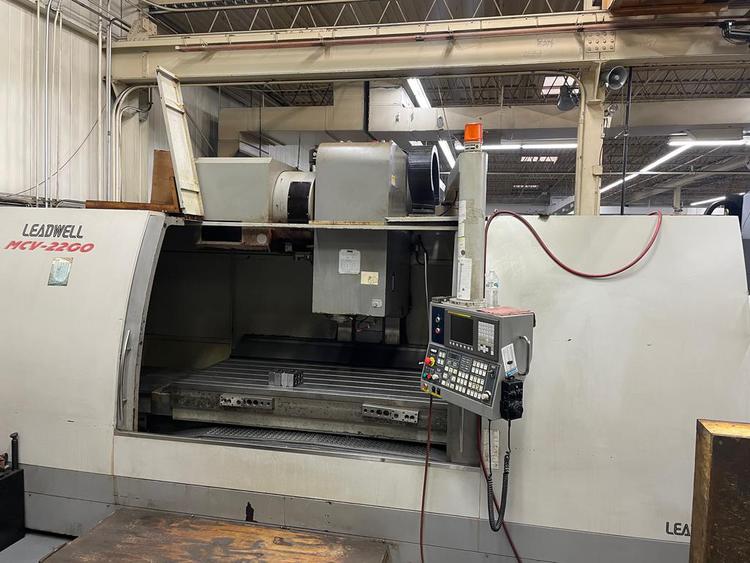

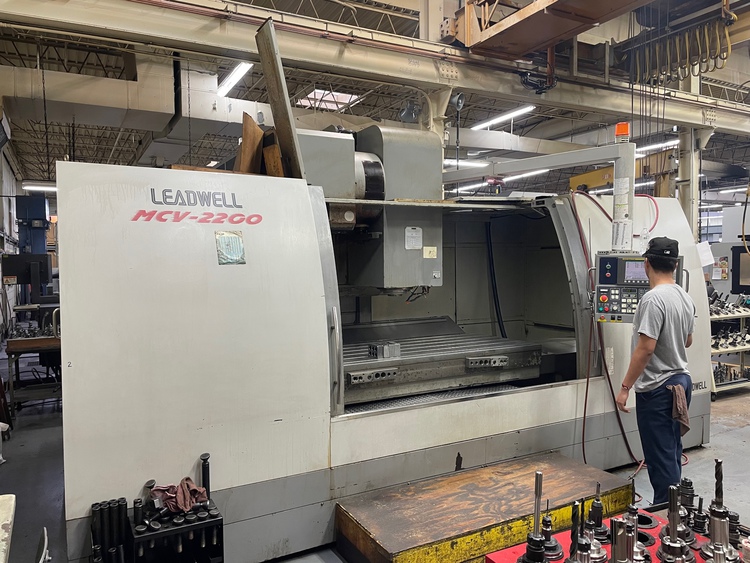

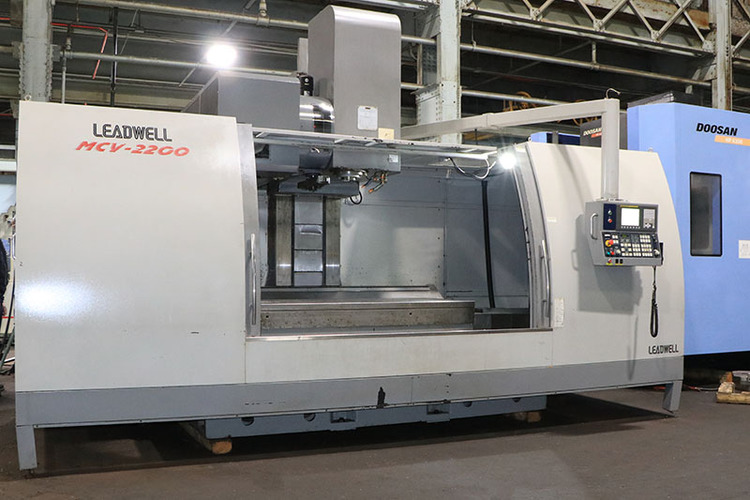

LEADWELL VERTICAL MACHINING CENTER

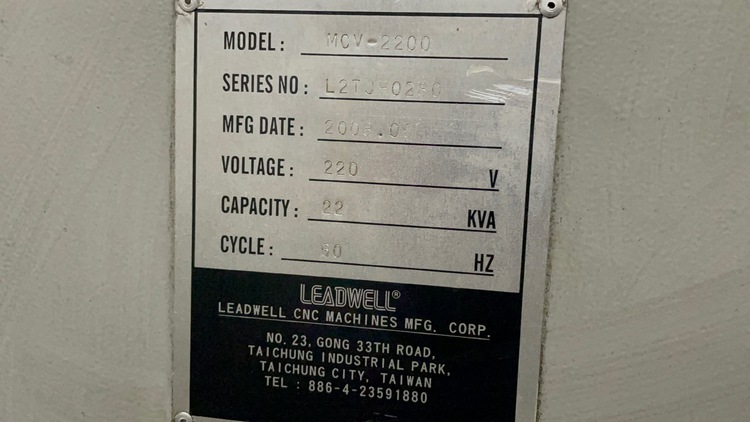

MODEL: MCV-2200,  NEW: 2008

SPECIFICATIONS:

X-AXIS TRAVEL ........................... 86.6"

Y-AXIS TRAVEL ........................... 40"

Z-AXIS TRAVEL ........................... 31.4"

SPINDLE NOSE TO TABLE TOP ............... UP TO 41"

DISTANCE FROM SPINDLE CENTER TO COLUMN .. 20.47"

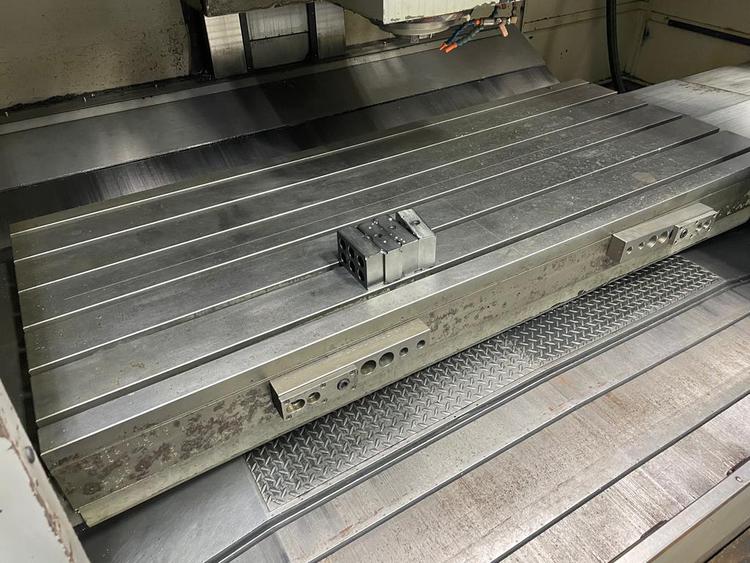

TABLE SIZE .............................. 94.4" X 37.7"

MAX TABLE LOAD .......................... 6,000 LBS

RAPID TRAVERSE RATES (X & Y/ Z) ......... 590 IPM

SPINDLE SPEEDS .......................... TO 6,000 RPM

SPINDLE MOTOR ........................... 35 HP

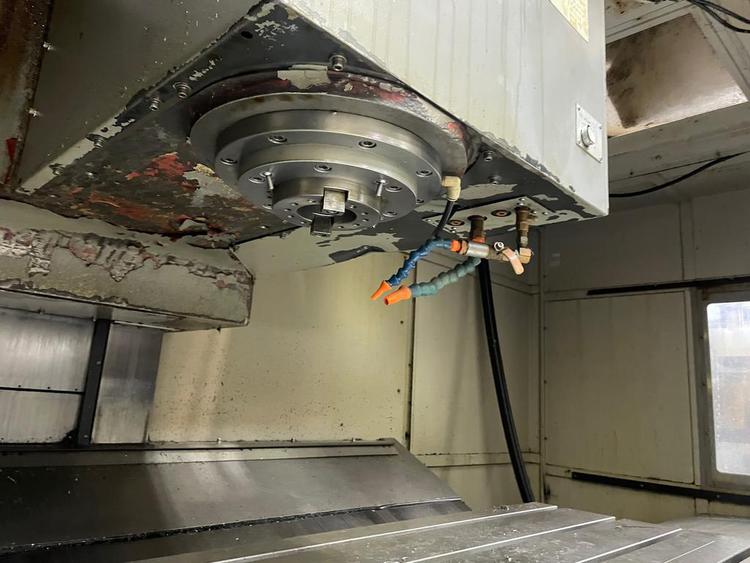

SPINDLE TAPER ........................... CAT 50

TOOL STORAGE CAPACITY ................... 32 TOOL

APPROX MCHINE DIMENSIONS ......... 205" X 182" X 134" TALL

APPROX MACHINE WEIGHT .................. 48,000 LBS

EQUIPPED WITH:

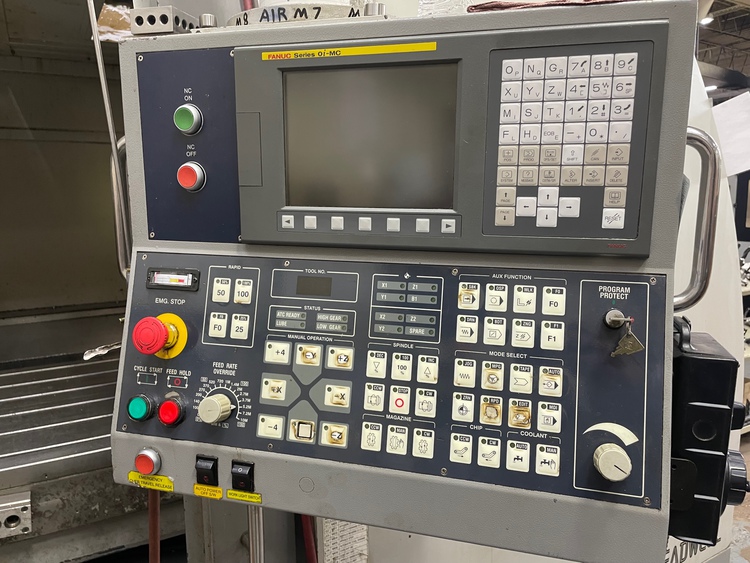

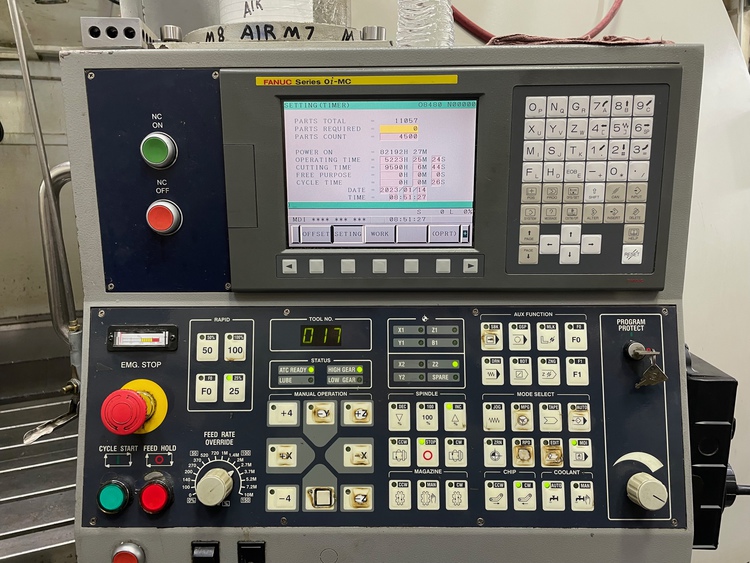

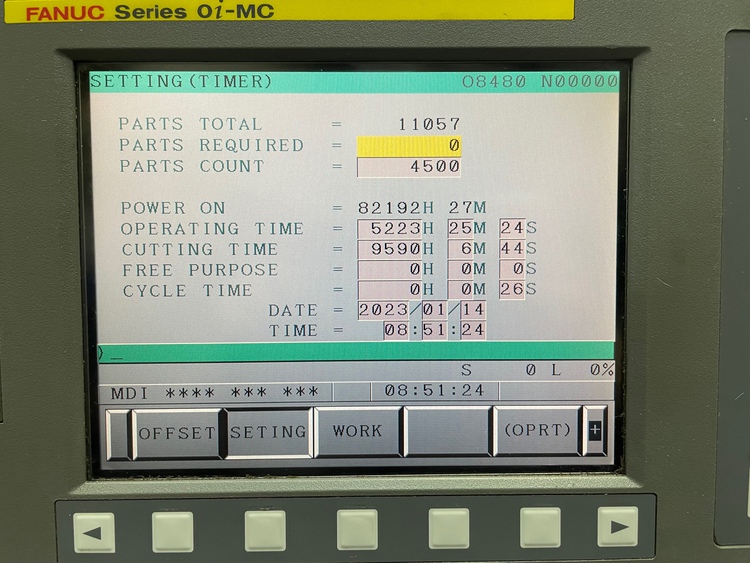

* FANUC MODEL: 0iMC0 CNC CONTROL

* REMOTE JOG HANDLE (MPG)

* BOX WAYS

* COOLANT TANK AND CHIP PAN, FLOOD COOLANT

* SPINDLE OIL CHILLER

* CHIP CONVEYOR

* 32 TOOL CAPACITY SIDEMOUNT CHANGER

* 35 HORSE POWER SPINDLE MOTOR
