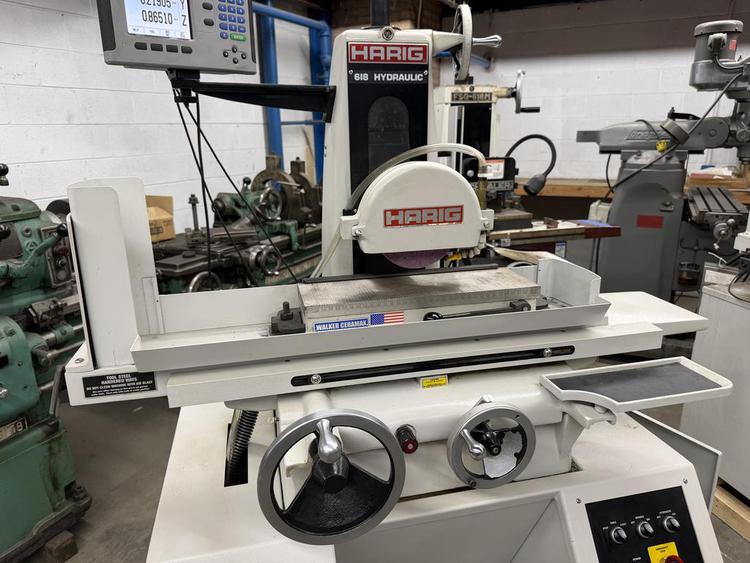

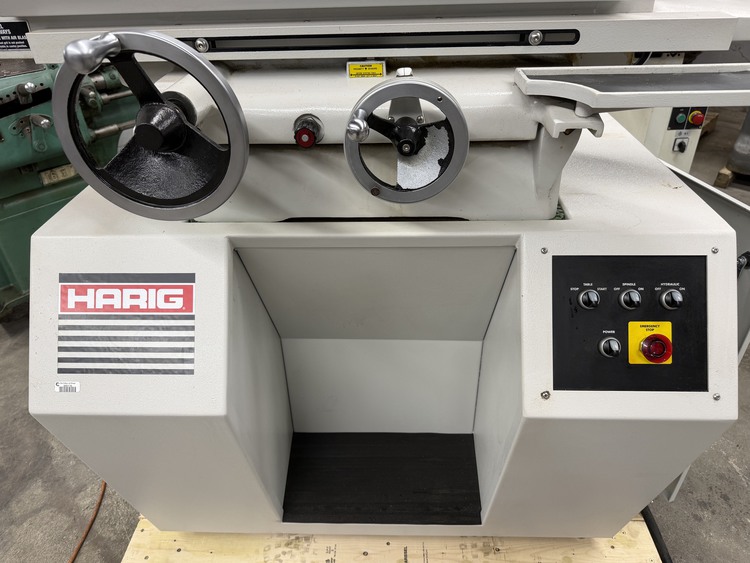

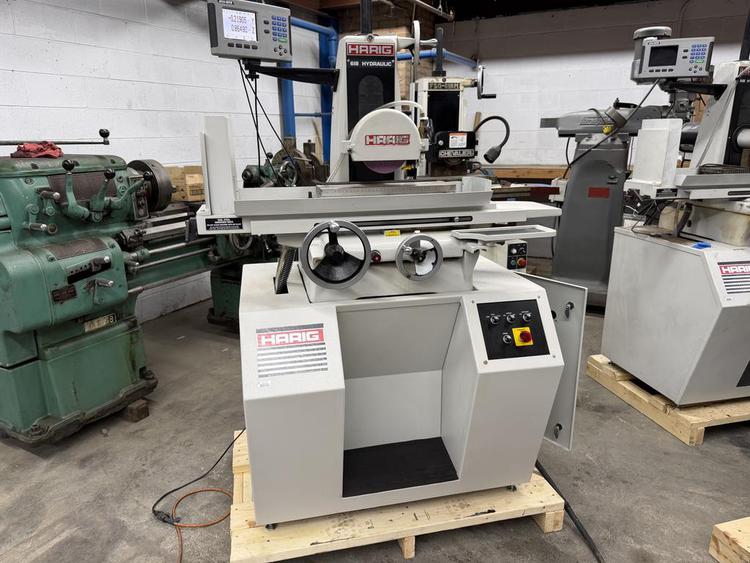

ONE USED- 6" X 18" HARIG (MADE IN U.S.A.)
SINGLE AXIS - HYDRAULIC TABLE
"PRECISION" SURFACE GRINDER

MODEL: 618 HYDRAULIC S/N: 11181-H, 11187-H, 11184-H, 11183-H(4 available)

NEW: 2004

SPECIFICATIONS:
WIDTH & LENGTH GROUND ................ 6" X 18"
LONGITUDINAL TRAVEL .................. 18- 3/4"
CROSS TRAVEL ......................... 6- 3/4"
LONGITUDINAL TABLE SPEED ............. 0 TO 70' FPM
WORKING HEIGHT UNDER THE WHEEL........ 11- 3/4"
GRINDING WHEEL DIMENSIONS (DxWxB)..... 7" x 1/2" x 1-1/4"
VERTICAL HAND WHEEL, GRADUATION ...... 0.0005"
CROSSFEED HANDWHEEL, GRADUATION ...... 0.001"

FLOOR AREA OPERATING SPACE............ 71" X 45"
APPROXIMATE WEIGHT.................... 1,500 LBS


MACHINE FEATURES:
- HYDRAULIC TABLE TRAVERSE
- HARIG "FLO-CLEAN" AUTO LUBRICATION SYSTEM
- 1.5 HP 3/60/208-230-460 VOLT SUPER-PRECISION DIRECT DRIVE
CARTRIDGE TYPE SPINDLE

EQUIPPED WITH:

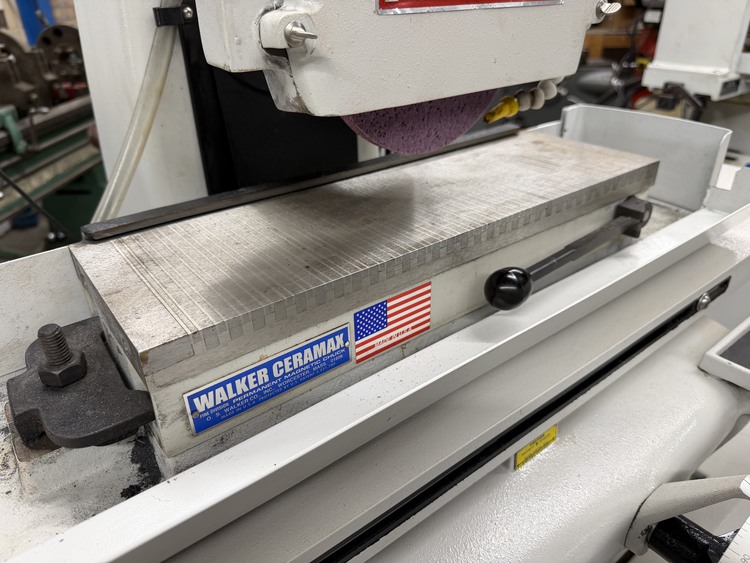

- 6" X 18" O.S. WALKER "CERAMAX" FINE-DIVISION PERMANENT MAGNETIC CHUCK
- COOLANT SYSTEM, COMPLETE WITH GUARDING, TANK & PUMP
- WORK LIGHT
- PRESENTLY WIRED FOR 3/60/220 VOLTS
