Engine Lathes > 80"x240"cc SHARP Engine Lathe, 2026(NEW)


Size 80"x240"cc
Make SHARP
Year 2026

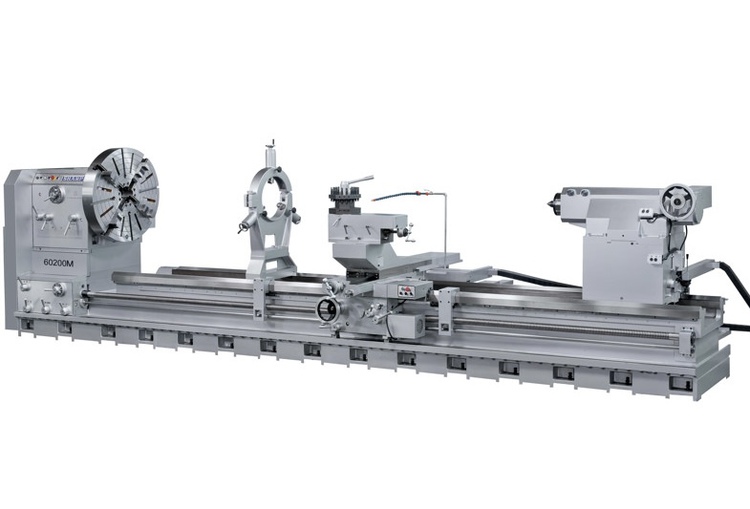

ONE NEW -                 80”x 240”cc SHARP Engine Lathe

                                    Model: 80240M

                                    80” Swing Over Bedways

                                    64” Swing Over Cross Slide

                                    Hardways

                                    Taper Turning Attachment-Option

                                    Inch / Metric Threading

                                    16 Spindle Speeds from  4 to 420 RPM

                                    A2-11 Spindle with a 6” Bore

                                    8” Diameter Tailstock Quill with a 6 MT

                                    Power Tailstock and Quill Travel

                                    4 Way Power Rapid Traverse on Carriage

                                    40” Diameter 4-Jaw Chuck-Option

                                    16” Capacity Roller Type Steadyrest

                                    32” Capacity Roller Type Steadyrest-Option

                                    4 Way Toolpost

                                    Auto Lube System

                                    Coolant System

                                    50 HP Main Motor



                                    Dimensions 341” x 86” x 76”    Weight- 46,000 lbs
