Milling Machines > HAAS EC1600 Horizontal Machining Center
| Size | EC1600 |
|---|---|
| Make | HAAS |
| Year | 2010 |

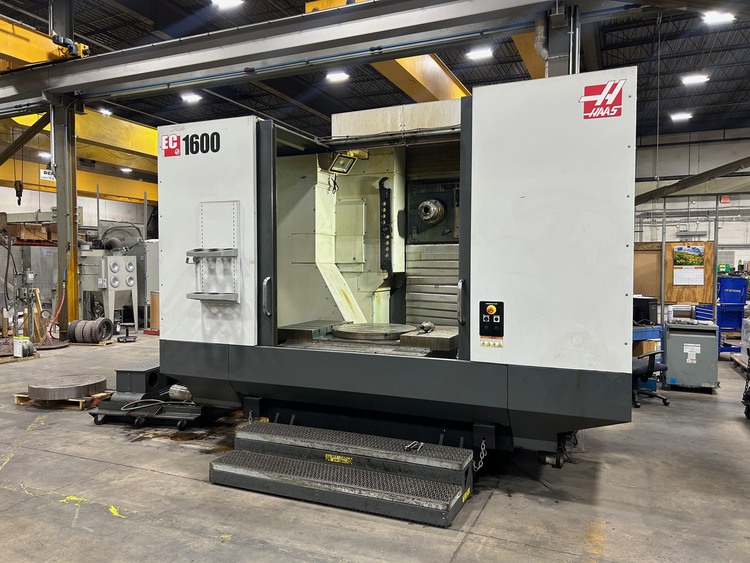

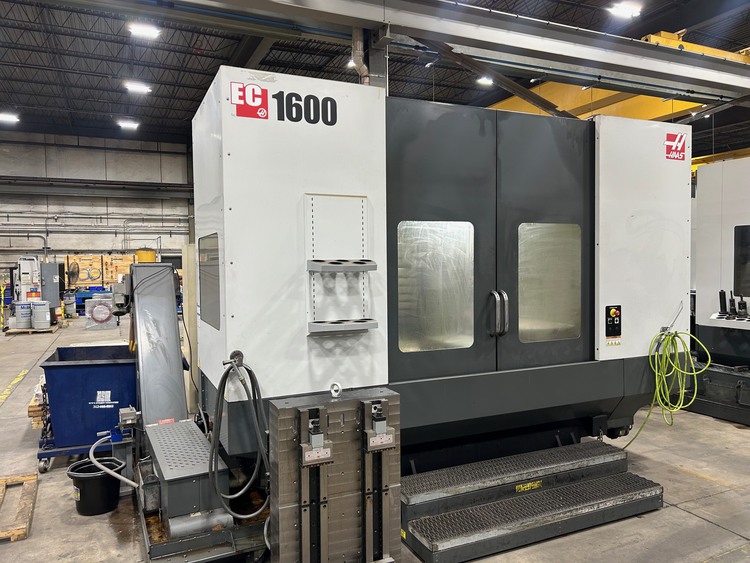

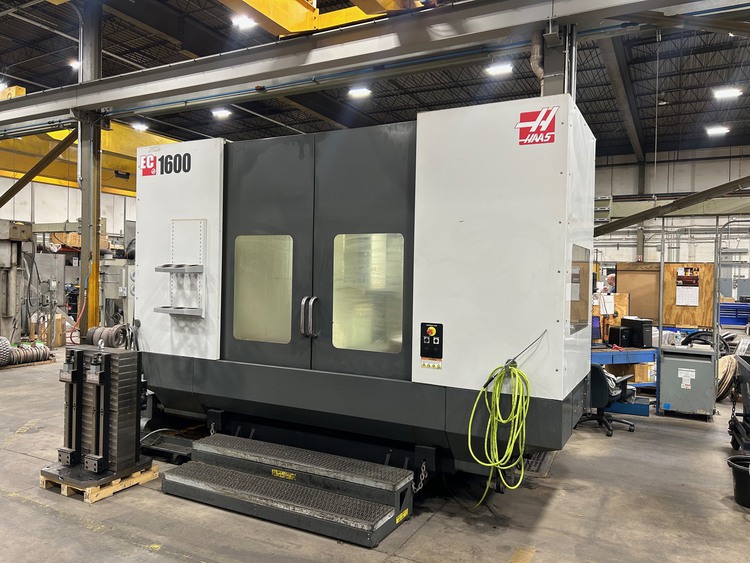

HAAS HORIZONTAL MACHINING CENTER
MODEL: EC-1600, S/N: 2053312, NEW: 2010
SPECIFICATIONS:
X-AXIS TRAVEL ................... 64″
Y-AXIS TRAVEL ................... 50"
Z-AXIS TRAVEL ................... 32″
SPINDLE SPEED ................... 10,000 RPM
TABLE SIZE ...................... 36" x 64"
PLATTER DIAMETER ................ 30"
MAX WEIGHT ON TABLE & PLATTER ... 10,000 LBS
SPINDLE MOTOR ................... 30 HP
SPINDLE TAPER ................... CAT 50
TOOL POSITIONS (ATC) ............ 30
APPROXIMATE MACHINE WEIGHT ...... 33,500 LBS
EQUIPPED WITH:

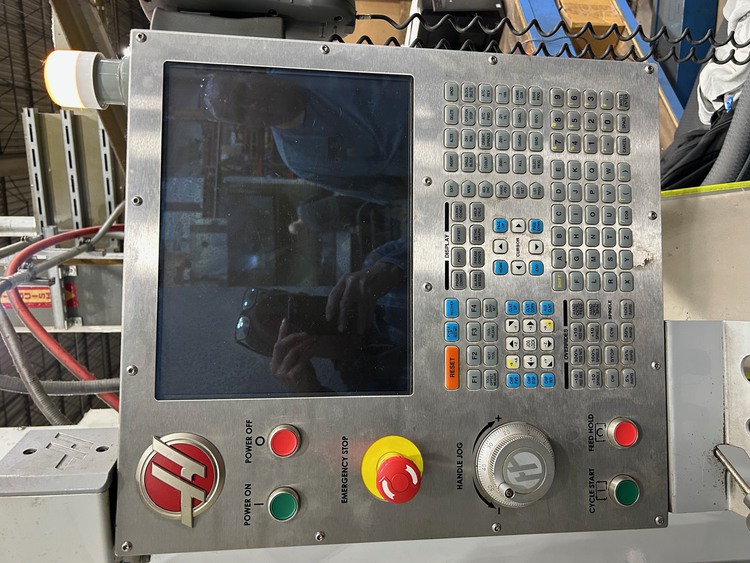

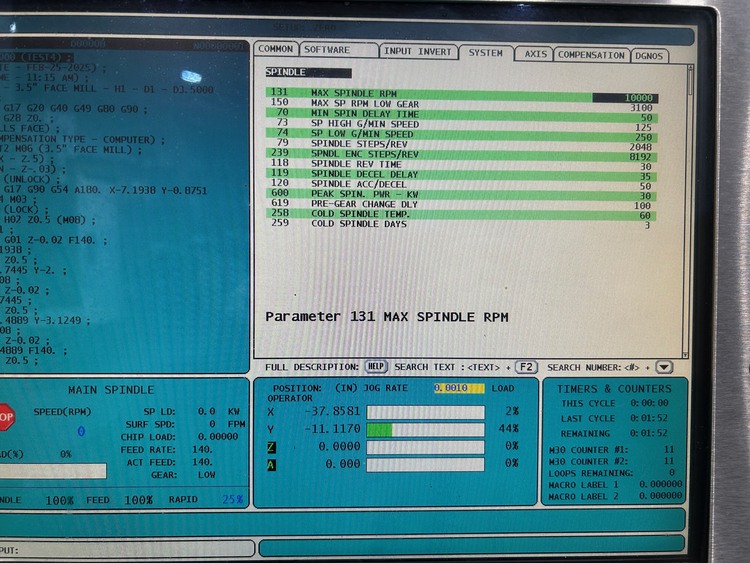

HAAS CONTROL & REMOTE JOG HANDLE RJH
10,000 RPM 2-SPEED GEARED HEAD

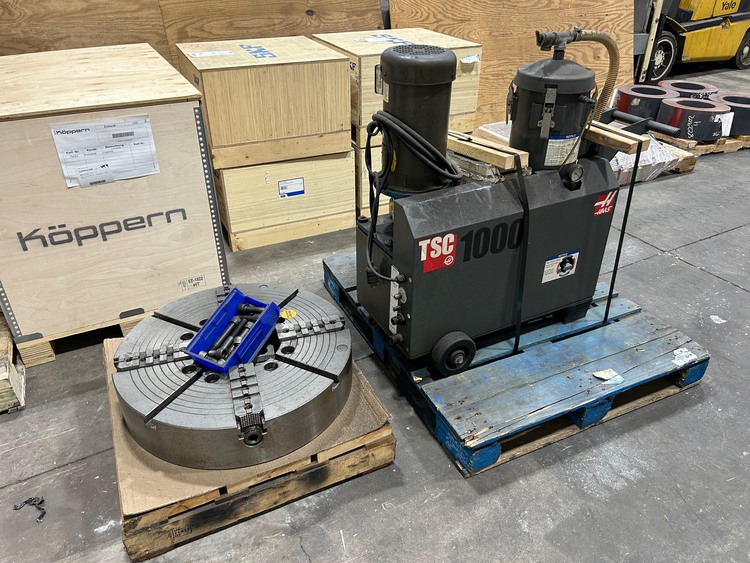

HAAS 1,000 PSI HIGH PRESSURE COOLANT THROUGH SPINDLE

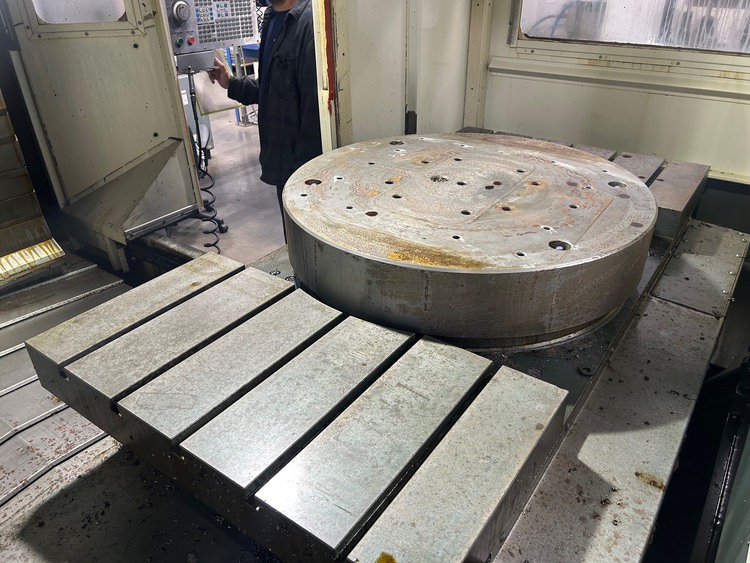

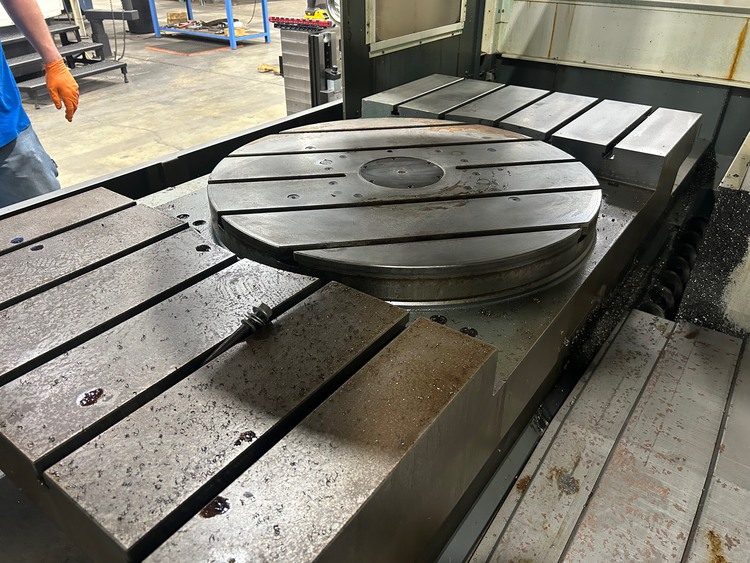

4TH AXIS ROTATING PLATTER
CHIP CONVEYOR
RENISHAW WIRELESS INTUTIVE PROBING SYSTEM (WIPS)
SIDE-MOUNT TOOL CHANGER (30 ATC)
30 HORSE POWER SPINDLE MOTOR
