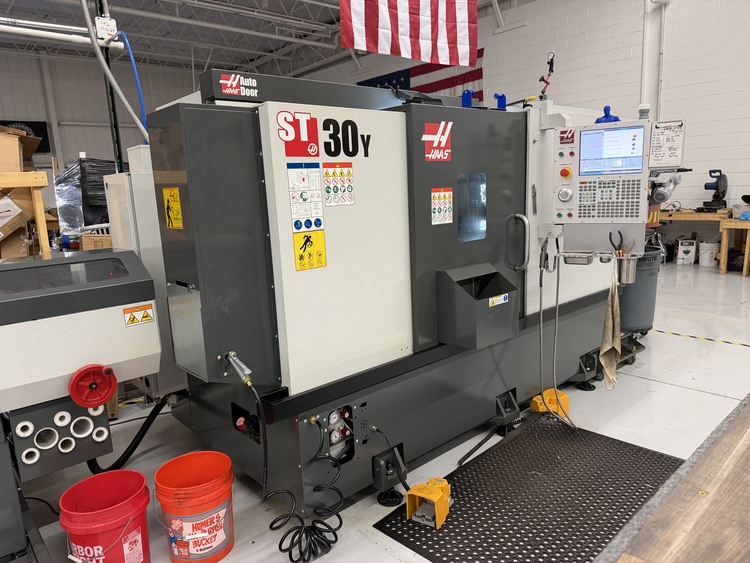

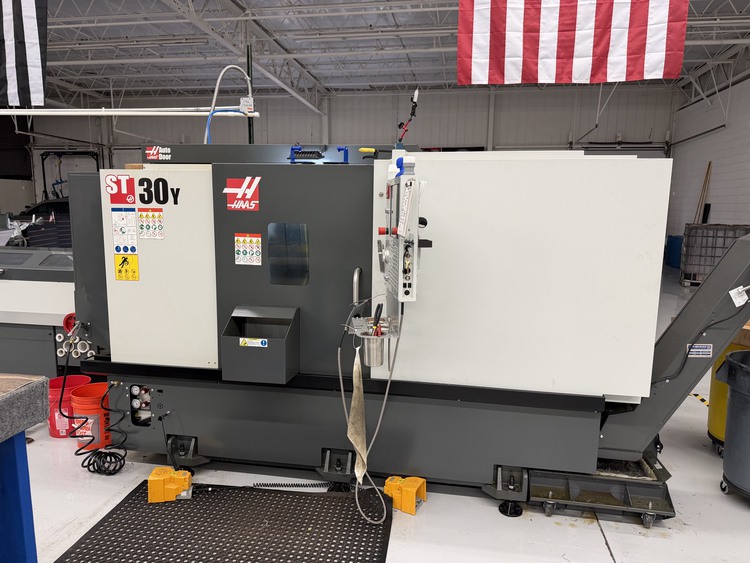

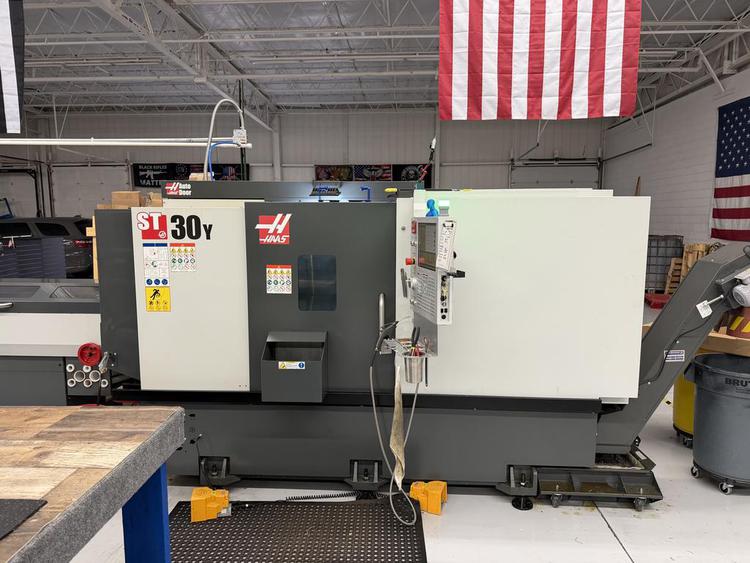

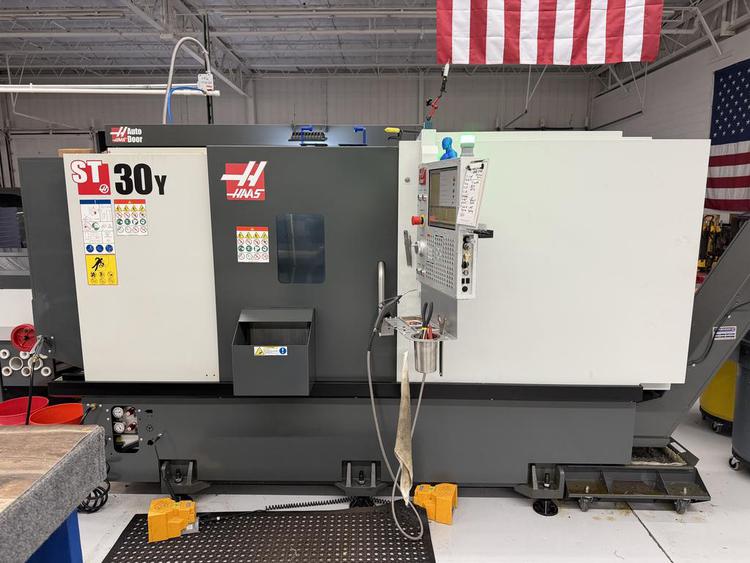

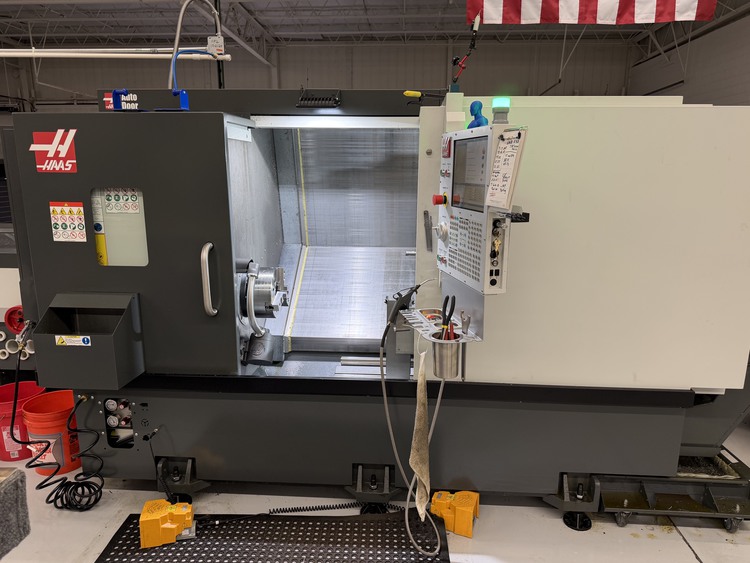

ONE USED- HAAS ST 30Y CNC Lathe, New 2024

SWING OVER BED     21"

MAX CUTTING DIAMETER  13.75"

MAX CUTTING LENGTH      32.5"

X-AXIS TRAVEL        9.4"

Y-AXIS           Yes

Y-AXIS TRAVEL        +/- 2"

Z-AXIS TRAVEL        32.5"

C-AXIS INDEXING    FULL C-AXIS

CHUCK SIZE  10"

BAR CAPACITY         3"

SPINDLE BORE          3.5"

SPINDLE NOSE          A2-6

SPINDLE MOTOR       30 hp

SPINDLE SPEED         4,500 RPM

SUB SPINDLE Yes

SUB SPINDLE - CHUCK SIZE 6.5"

SUB SPINDLE - SPINDLE NOSE        A2-5

SUB SPINDLE - SPINDLE SPEED       4,200 RPM

TURRET CAPACITY  12

TURRET TYPE            BMT65

LIVE MILLING           Yes

LIVE MILLING SPEED           6,000 RPM

Equipped With

HAAS NEXTGEN CONTROL

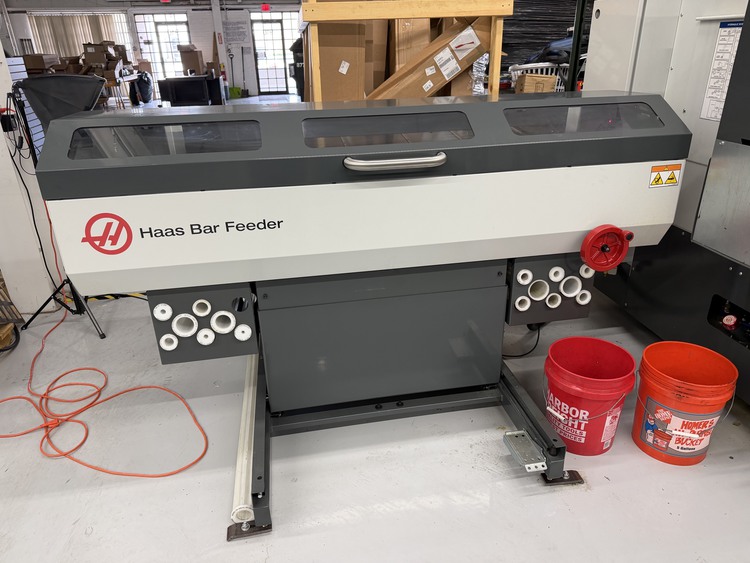

HAAS BAR FEEDER V2

Y-AXIS

LIVE MILLING

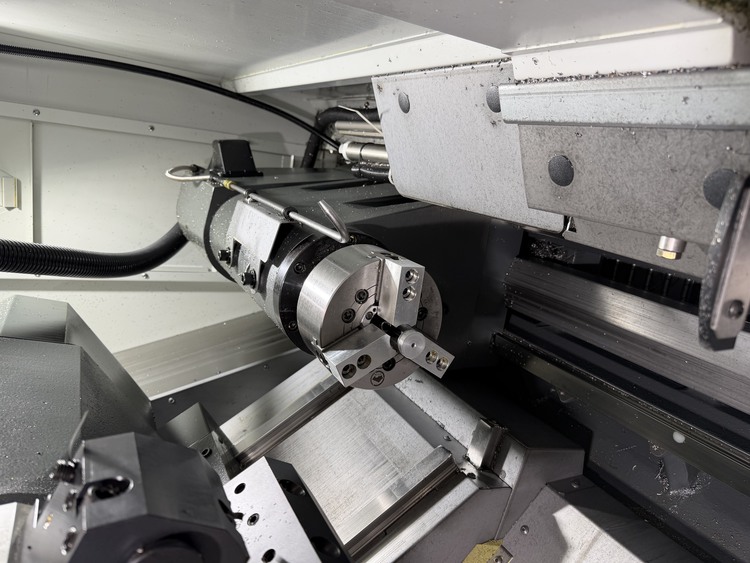

SUB SPINDLE (A2-5 FINISHING SUB-SPINDLE)

4500 RPM MAIN SPINDLE UPGRADE

6000 RPM LIVE MILLING SPEED UPGRADE

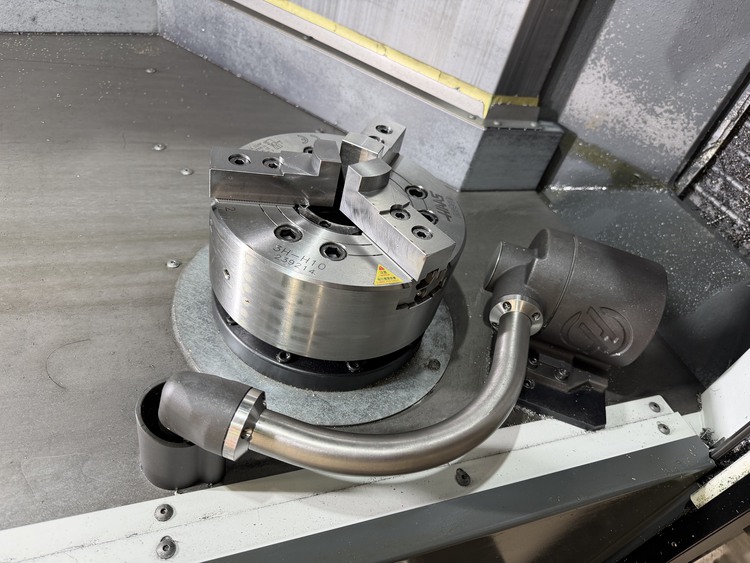

10", 3-JAW HYDRAULIC CHUCK (MAIN)

6.5", 3-JAW HYDRAULIC CHUCK (SUB)

AUTOMATIC TOOL PRESETTER

PARTS CATCHER

CHIP CONVEYOR

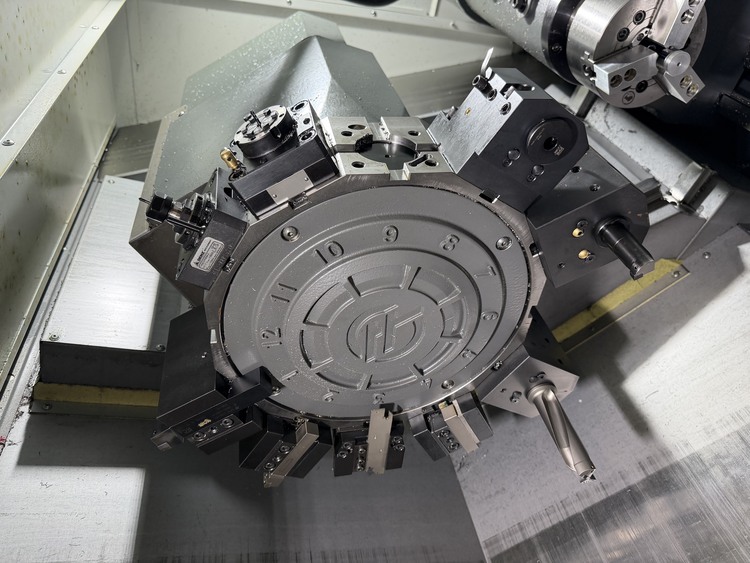

12-STATION BMT65 TURRET

COOLANT TANK OIL SKIMMER

HIGH-INTENSITY LIGHTING

VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)

MEDIA DISPLAY M-CODE (M130)

SPINDLE ORIENTATION

RIGID TAPPING

MACROS

USB PORT

ETHERNET

AN ASSORTMENT OF LIVE & STATIC HOLDERS

** AS OF AUGUST 24, CUTTING TIME - 425HOURS (SEE PHOTO)
